FRP Solar Panel Mounting Bracket
Fiberglass solar panel mounting bracket is electromagnetic free and spark free, making it a perfect choice for working sites with conductive hazards, magnetic sensitive devices and inflammable & explosive places.
Features of Fiberglass Solar Panel Support Bracket:
1. Corrosion-resistant:
Fiberglass reinforced plastic solar panel bracket has excellent corrosion resistance, can withstand varying degrees of acid, alkaline, organic solvents and salts and other gas, liquid medium corrosion, never rust. According to the practical use of the occasional media types and temperature needs, there are o-benzene, m-benzene, vinyl type for the choice.
2. Light weight:
The glass fiber content of the light weight and high strength FRP solar panel bracket is higher than that in other composite materials, so the longitudinal strength is very high, which is equal to the steel. The density of the extruded profile is only about one fourth of the steel, so the density/strength ratio is much higher than that of the steel. Meanwhile the modulus of the extruded profile is lower than that of the steel, generally only 1/7 to 1/10 of the steel.
3. Anti-aging:
FRP solar panel bracket is made of high-quality thermosetting resin and glass fiber systematically. It is different
from other general thermoplastic, and its normal service life can reach 20 years. The best anti aging effect can be obtained by adding UV resistant agent and polyester fiber felt.
4. Easy maintenance:
FRP solar panel brackets are made by distributing pigments into resins. The product colors can be done at customers' will. It rarely fade, needs no paint protection and has self-cleaning function, which providing a lower
comprehensive cost. The FRP products have long service life, basically do not need maintenance, costs lower installation and transportation. Judging from the overall economic benefits, FRP bracket's life cycle cost is low.
5. Stable size, easy to assembly:
The FRP solar panel bracket is light but strong, can be assembled easily by hand or light installation tools in short time. The application of FRP solar bracket system has more advantages than simple production and installation. Solar panels can also move flexibly according to the sun's rays and seasons just as new installed. Each plane can be adjusted to different angles by moving fasteners, and the solar panel can be accurately fixed in a specified position by re-fastening.

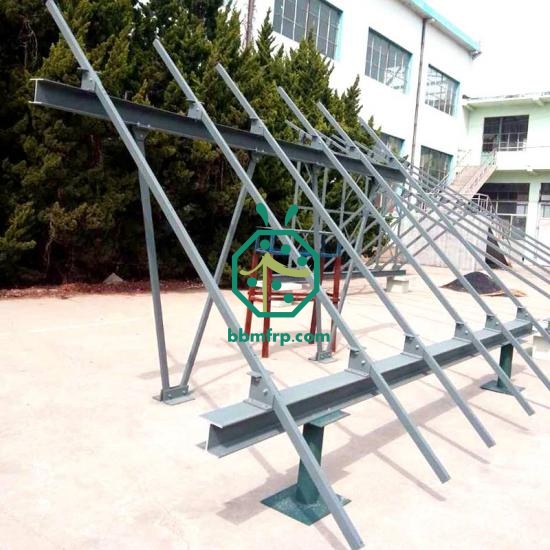

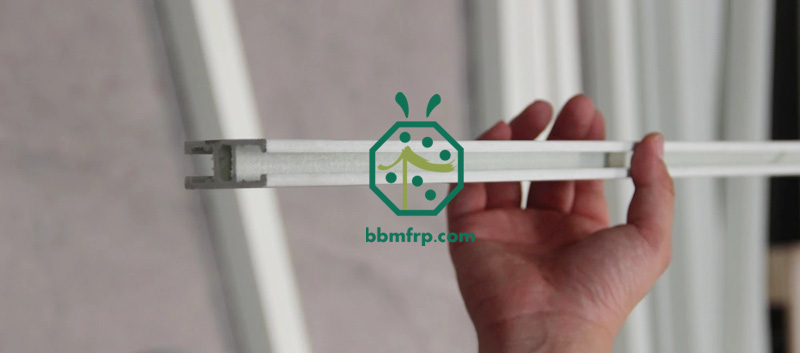

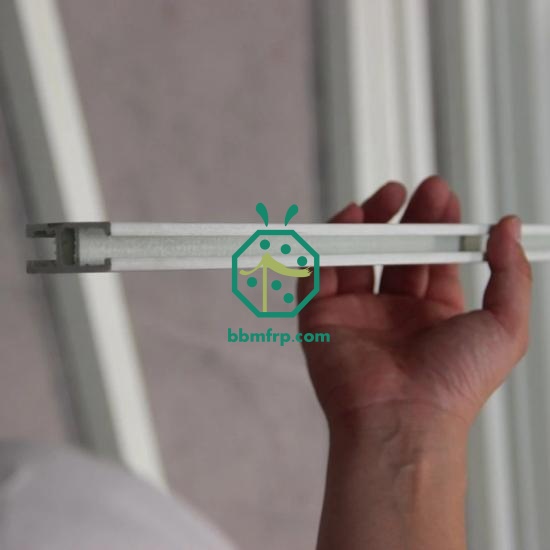

Product Display of FRP Solar Mount Bracket:

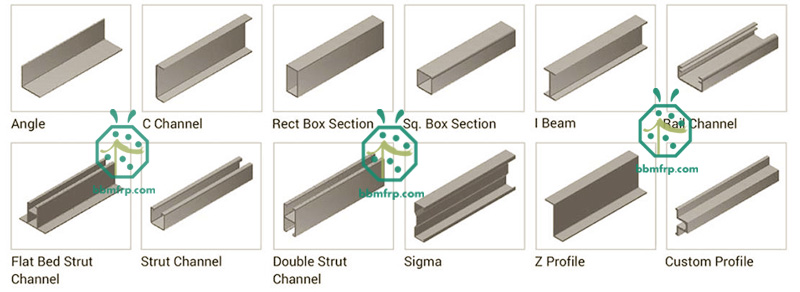

FRP Structures Profiles Suitable For Solar Panel Mounting:
Item
Type
1
Angle
2
C Channel Profile
3
Rect Box Section
4
Sq. Box Section
5
I Beam
6
Rail Channel
7
Flat Bed Structure Channel
8
Structure Channel
9
Double Structure Channel
10
Sigma
11
Z Profiles
12
Custom Profile

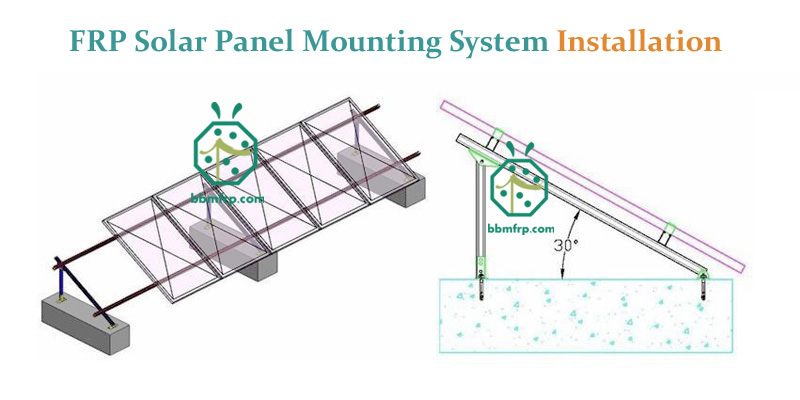

Installation of Fiberglass Solar Panel Mounting System:

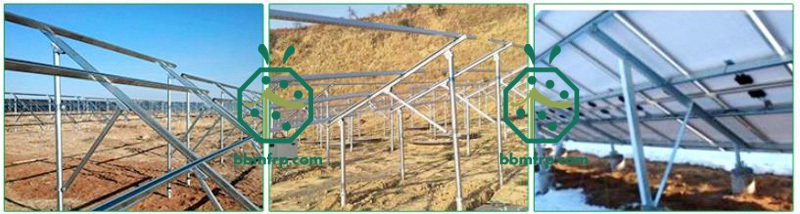

Project Photos of FRP Solar Panel Mounting System:
