Vinyl Sheet Pile
PVC Sheet Piles have no special coatings, which can be harmful to the environment. Additionally, their durability means long-term sustainability is not only an option but a reality. Add that to their lack of corrosion and what is left is a durable, attractive, affordable, and environmentally friendly piling.
Features of PVC sheet pile:

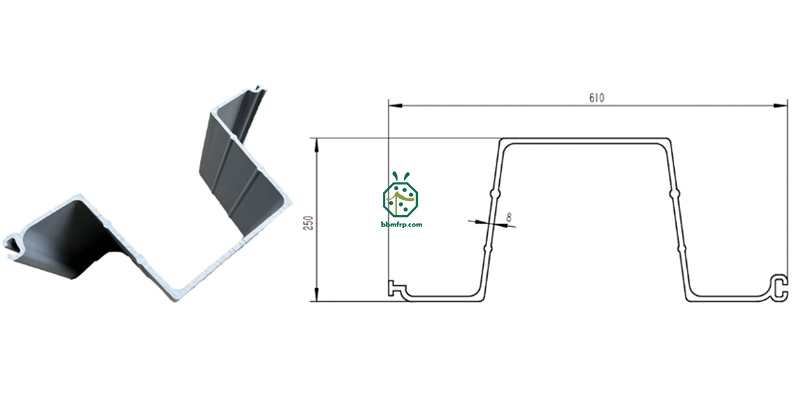

Thickness:
8mm (9mm or 10mm for option)
Section Width:
610mm
Section Depth:
250mm
Length:
Any length
Weight:
14kg/m
Color:
Grey color
Material of PVC Sheet Pile:
PVC sheet piles are made of rigid polyvinyl chloride with the addition of process-facilitating, impact-resistant improved materials, heat and UV stabilizers, and mineral fillers.
Mechanical resistance of PVC Sheet Pile:
Moment of Inertia:
12780 cm4/m
Section Modulus:
1090 cm3/m
Ultimate Moment:
4780 kg-m/m
Tensile Strength:
47.2 MPa
Flexural Strength:
74.9MPa
Modules of Elasticity:
2680MPa
Lzod Impact Strength:
5.8 KJ/m2
Heat Deflection Temperation:
72℃

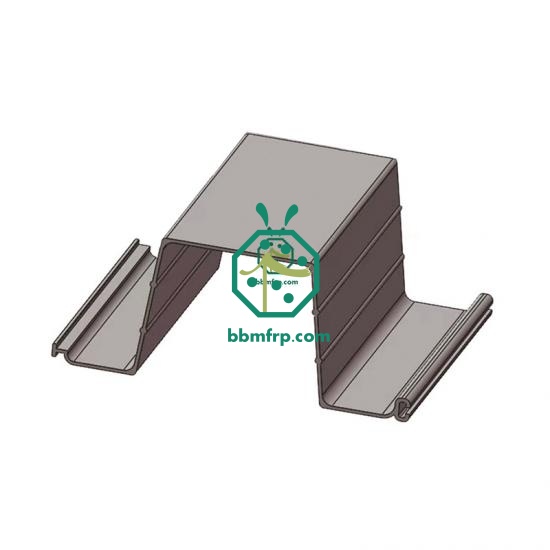

Product Photo of PVC Sheet Pile:

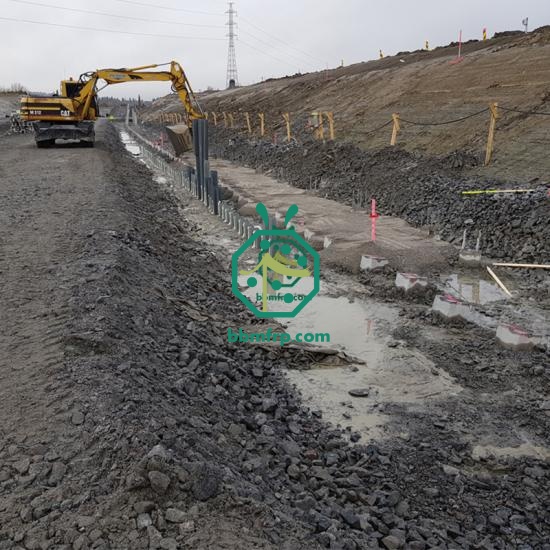

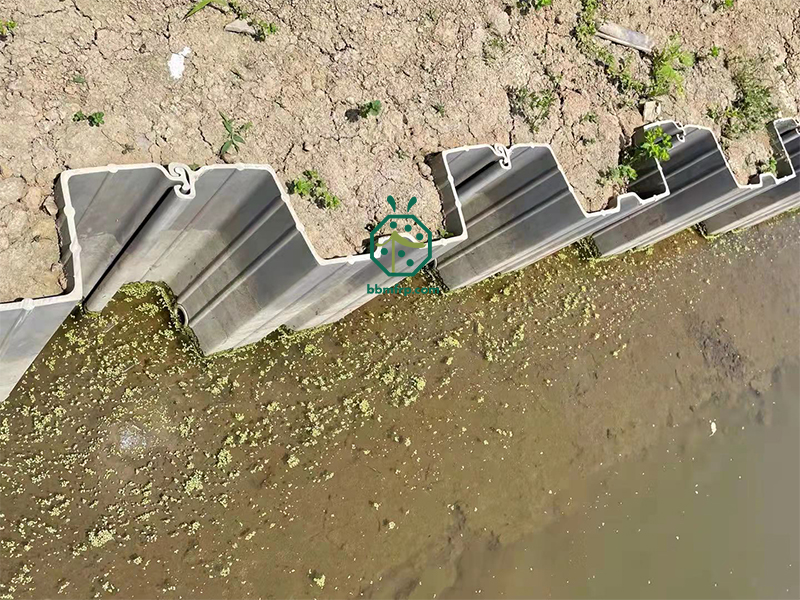

Application of PVC Sheet Pile:
