FRP cable tray is divided into ladder type cable tray, trough type cable tray and tray type cable tray. FRP cable tray is an automated production process in which untwisted glass fiber and other continuous reinforcement materials, polyester, flame retardant materials, surface mats, etc. are impregnated, passed through the cable tray forming mold, and cured at high temperature in the mold, and then continuously ejected from the mold.
The pultruded fiberglass cable tray has the characteristics of light weight, flame retardant, anti-corrosion, immersion resistance, and high mechanical strength. When users lay cables and require shielding performance, our company clamps mixed pultrusion of cast titanium steel mesh or copper mesh to enhance the anti-interference ability of the power supply. The load capacity of the pultruded glass fiber reinforced plastic cable tray is similar to that of the original steel tray of the same specification. The weight is a quarter of the copper bridge. Corrosion resistance is ten times that of copper. Therefore, it is widely used in petroleum, chemical, textile, light industry, metallurgy, machinery, electric power, communication, underground garage, subway and national defense engineering indoor and outdoor cable laying, power supply and cable tunnels, etc. Series of cable trays are suitable for electric power with voltage below 10KV Laying of cables and control power supply, lighting wiring, pneumatic and hydraulic pipelines.
1. Consist of fiberglass cable management system:

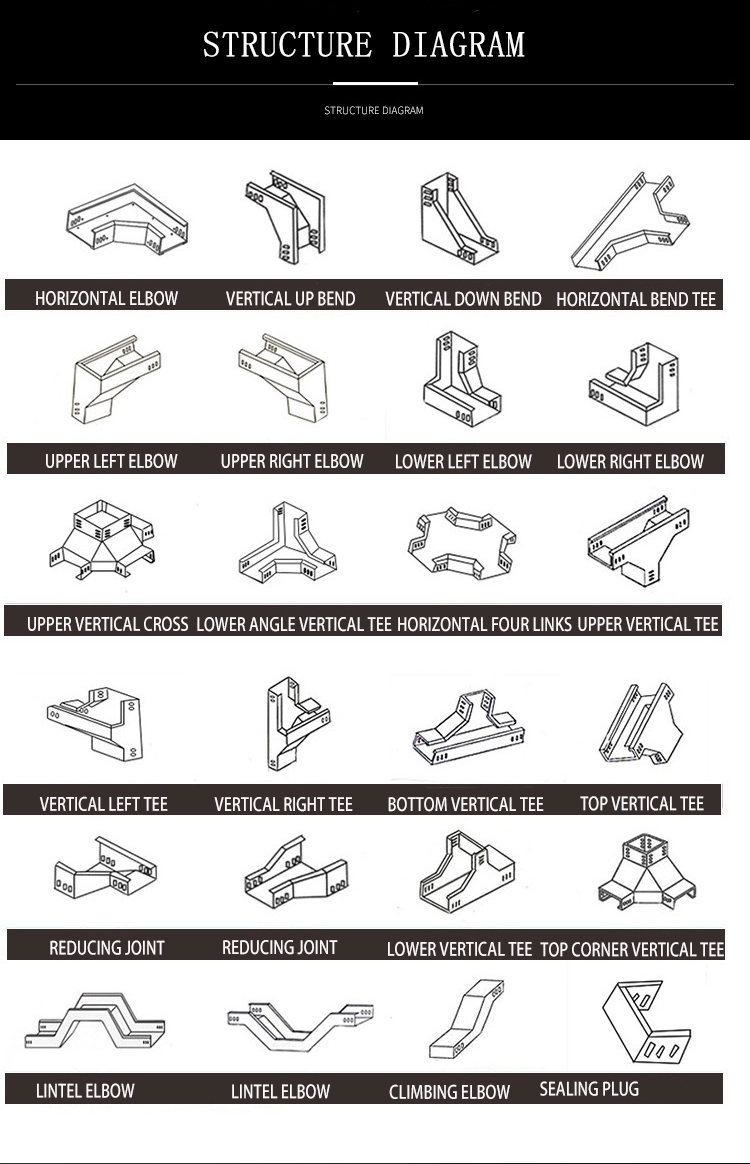

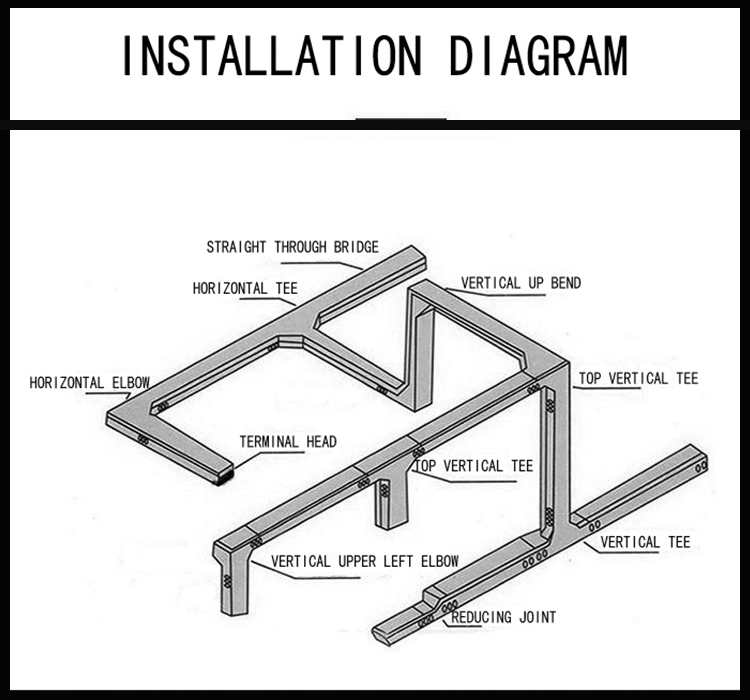

A complete FRP cable tray is composed of straight run, horizontal bend, horizontal tee, horizontal cross, straight reducer, left reducer, right reducer, vertical outside bend, vertical inside bend connected with splice plates, clamps, brackets, etc.
2. Product features of FRP cabel trays:
* Corrosion resistant
* High strength & light weight
* Long service life
* Fire retardant
* Impact resistant
* Nonconductive and thermal insulation
* Non-magnetic electromagnetic transparency
* Dimensional stability, Bright color
* Low-maintenance

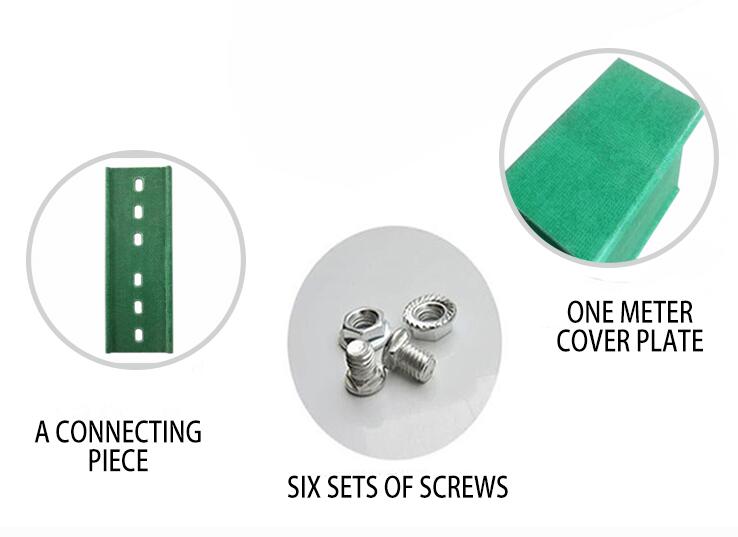

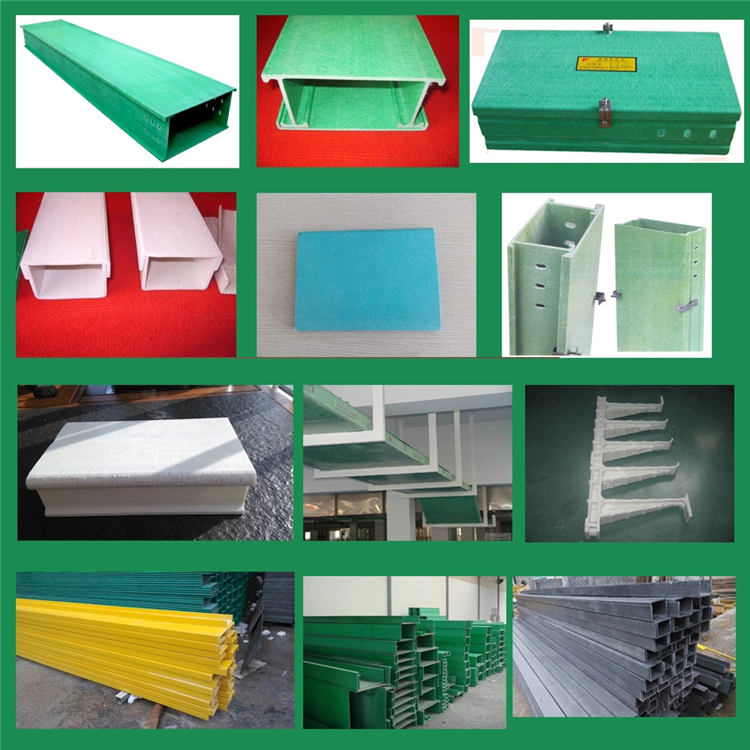

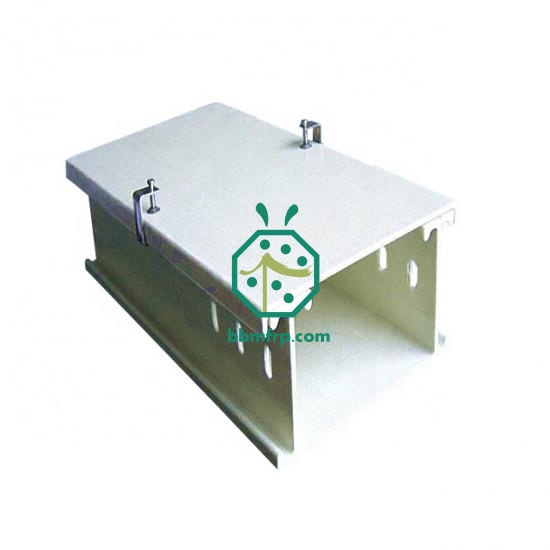

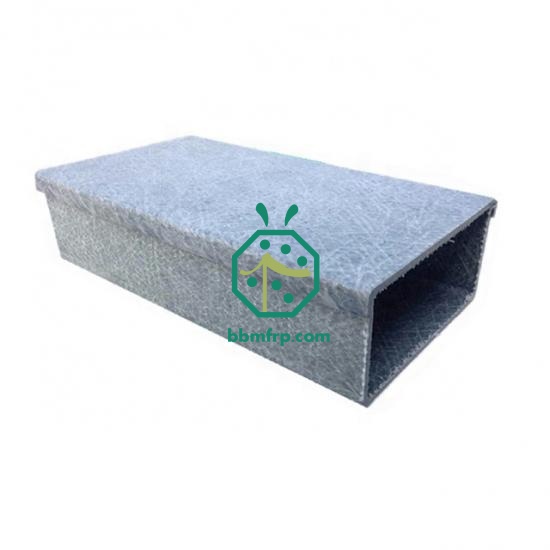

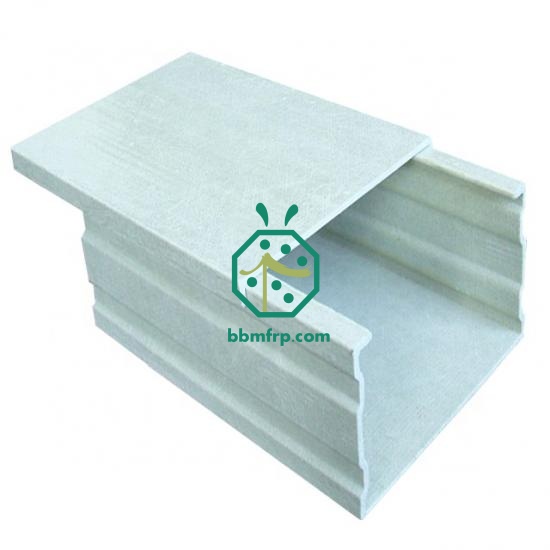

3. Product photos of FRP channel cable tray with accessories:
Chemical Plants
Power Plants
Effluent Treatment Plants
Offshore Platforms
Paper Plants
Refineries
Xiamen Beatles FRP Material Co., Ltd is one of the industry's leading manufacturers of Fiberglass Roofing Panel, and provides OEM/ODM services, with the advantages of mature technology and competitive prices. International standard design, production and quality service system, timely delivery!
