Composite sheet piling products are more corrosion resistant, easier to handle and can provide substantial cost-savings during shipping and installation than steel and conventional materials. Composite sheet piling is an efficient and environmentally friendly alternative to steel sheet piling in marine structures, flood walls, and seepage barriers.

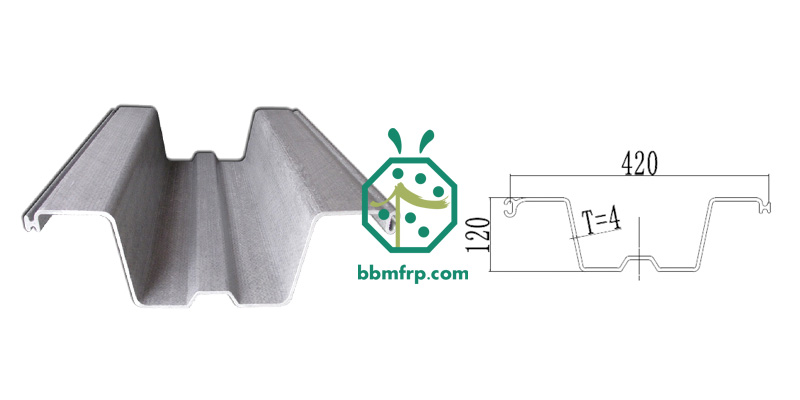

1. Size of Composite U Type Sheet Pile
2. Features of Composite Sheet Piling
Thickness:
4mm
Section Width:
420mm
Section Depth:
120mm
Length:
Any length (By container (11.8m or less) )
Weight:
5.5kg/m
Color:
Grey color or customized
3. Mechanical resistance of Durable Composite Sheet Piling
Moment of Inertia:
1x1620 cm4/m
Section Modulus:
Wx=276.3 cm3/m
Tensile Strength:
280 MPa
Flexural Strength:
230MPa
Lzod Impact Strength:
0.9 J/mm
Thermal Expansion:
28um/m℃
Water Absorption:
0.16%/24hrs@25℃

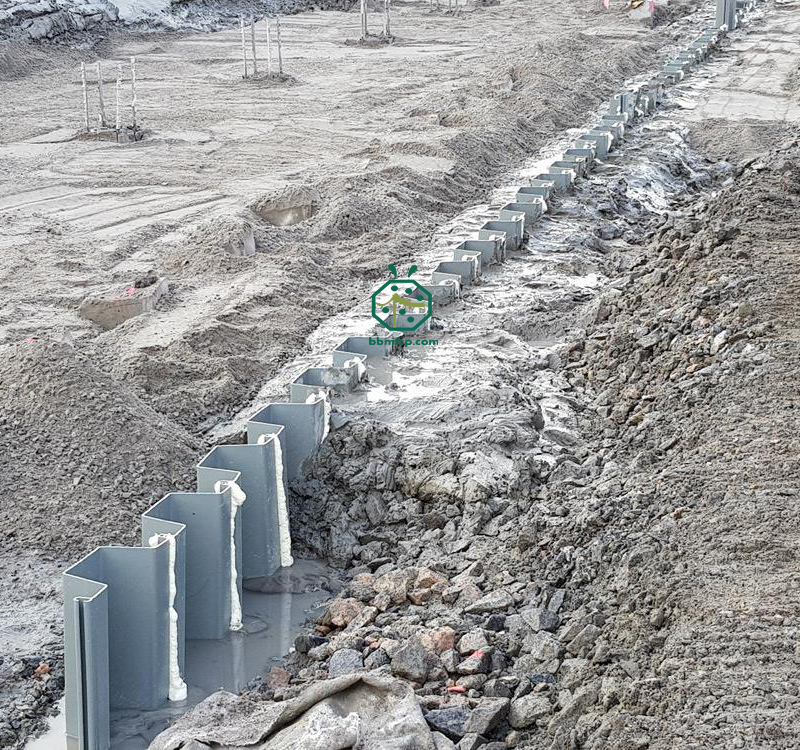

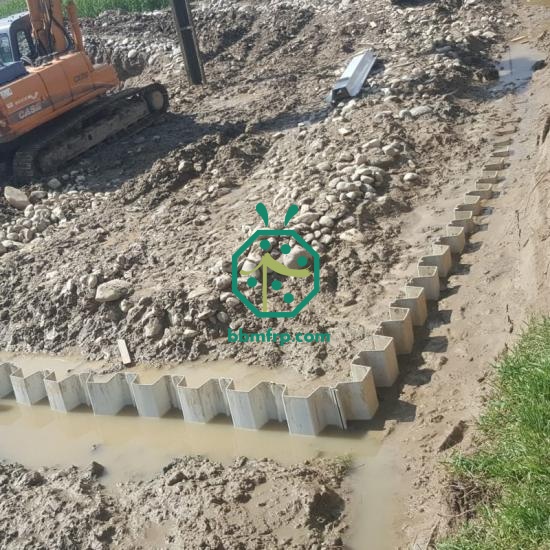

4. Application of Composite Sheet Piling Price
Composite sheet piling is the strongest, most durable composite sheet piling profile available and often specified for bulkheads in areas that require heavier loading support than vinyl.
