Custom Flat Fiberglass Batten
Fiberglass Batten is manufactured using pultrusion process. Glass mat and roving are drawn through a resin bath and pulled through a heated die to form the desired shape. We are offering a wide range of fiberglass pultrusion products based on the pultrusion process.
Other Profiles include FRP angle, fiberglass square tube, FRP round tube, fiberglass beam,fiberglass bar, FRP channel, FRP Rod, etc.

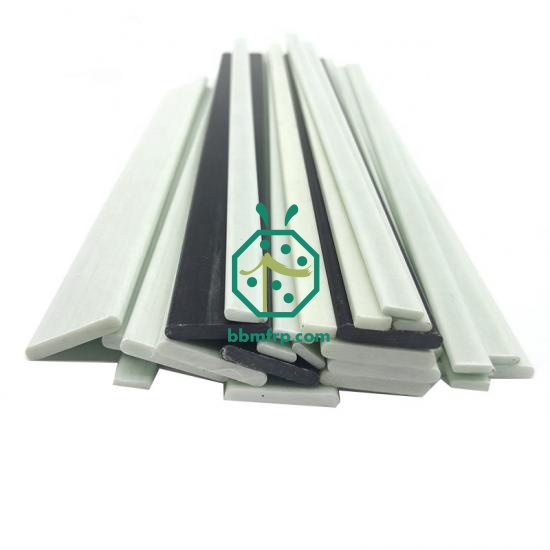

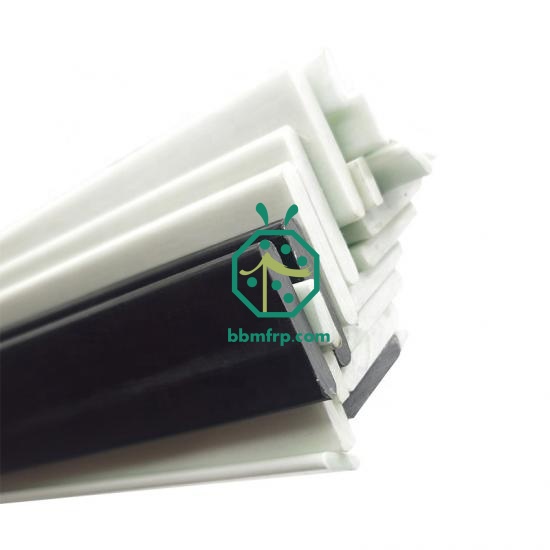

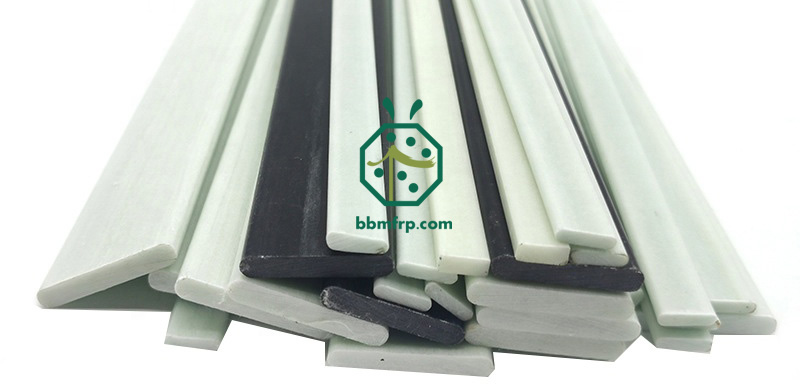

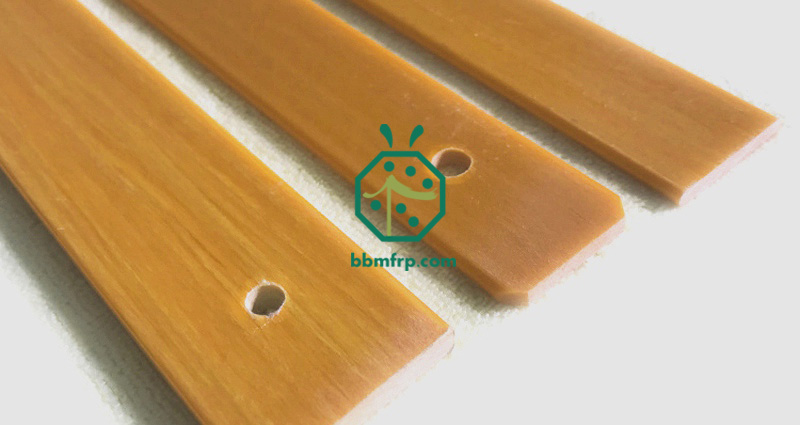

Product Photos of Custom Flat Fiberglass Batten:

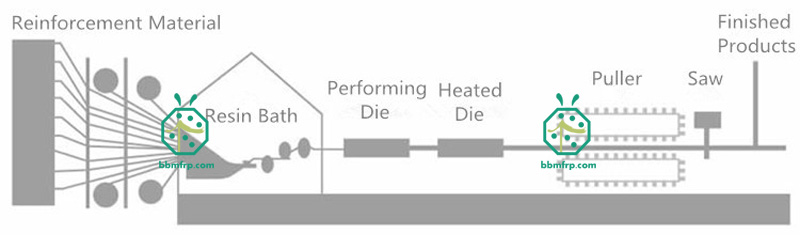

Production Process:
Standard Sizes of Fiberglass Batten:
|
Size - A(mm)
|
Size - B(mm)
|
Weight(G/m)
|
|
7
|
4
|
43
|
|
9.5
|
3
|
54
|
|
10
|
1
|
19
|
|
10
|
2
|
38
|
|
10
|
3
|
57
|
|
11
|
6
|
126
|
|
12
|
2
|
46
|
|
12
|
3
|
69
|
|
12
|
5
|
114
|
|
12
|
8
|
180
|
|
15
|
2.25
|
60
|
|
15
|
3
|
86
|
|
15
|
4.5
|
120
|
|
20
|
4
|
153
|
|
25
|
5
|
238
|
|
36
|
6
|
415
|
|
40
|
4
|
296
|
|
50
|
3
|
285
|
|
52
|
5
|
459
|
|
64
|
6
|
730
|
Customization services for fiberglass flat batten:

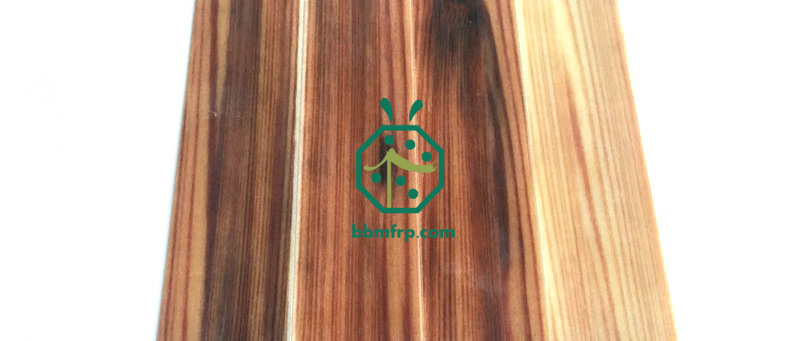

1.Surface: could be made to wood grain surface

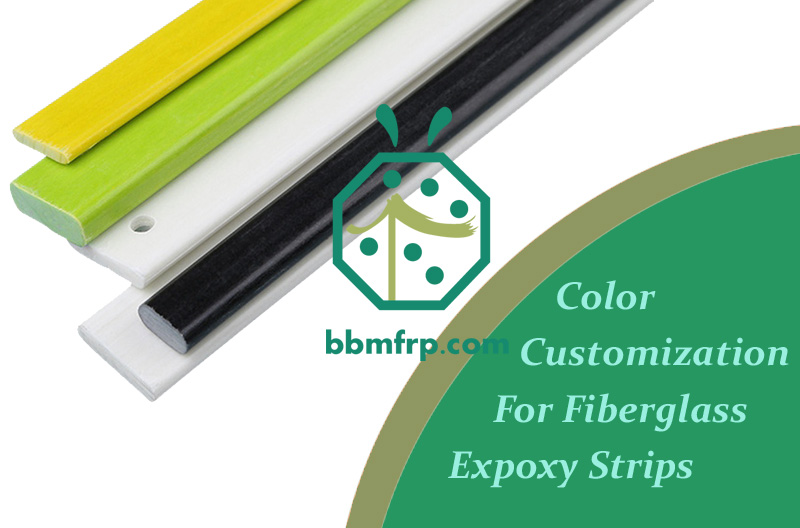

2.Could custom various colors.

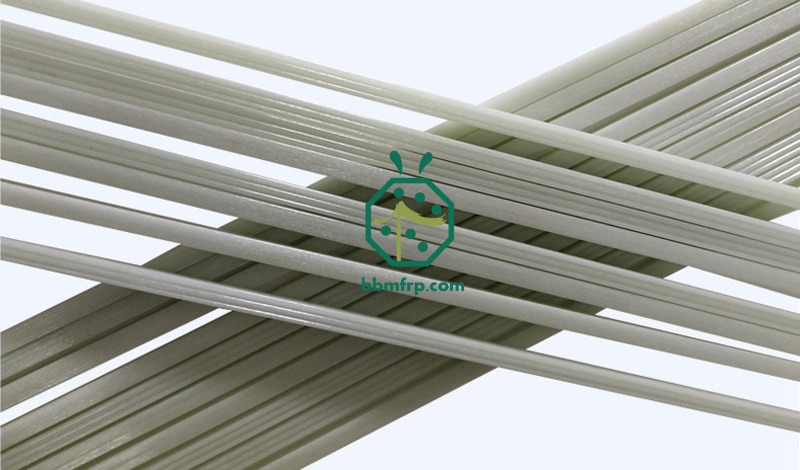

3.Grooved

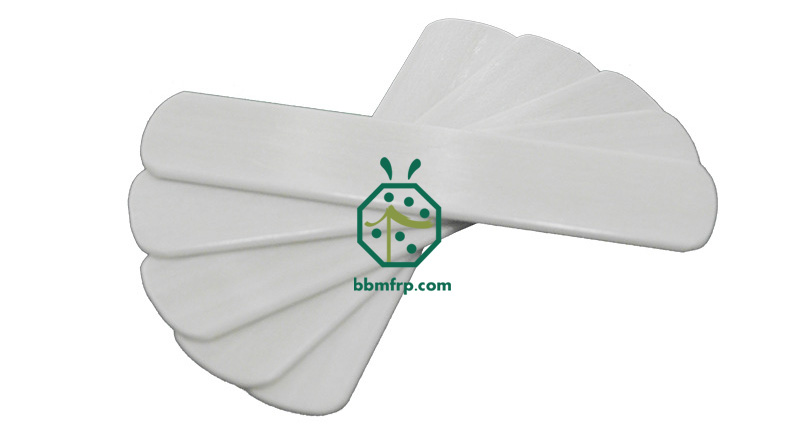

4.Grinding round edge

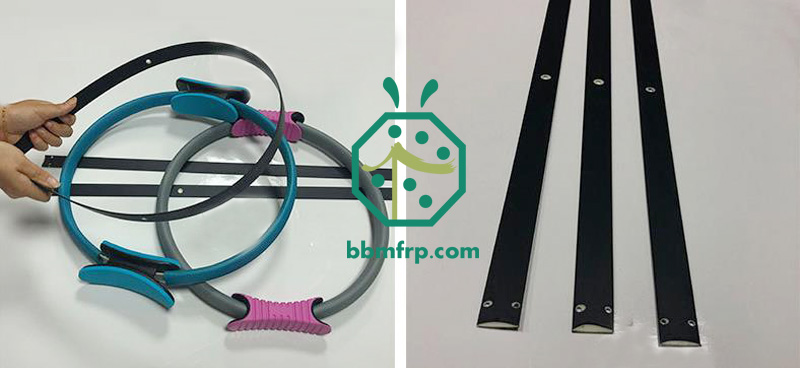

5.Drill holes
6.Rubber Coating
