The transparent Fiberglass skylight roofing sheet is a kind of light transmitting construction material, offering light transmittance rate over 85%. It is primarily made of a thermosetting plastic reinforced with glass fiber.
Fiberglass skylight panel is a composite material of polymer mixed with fibers such as fibreglass to enhance the strength and rigidity of fibres. FRP skylight can also reduce the total weight of the roof. At the same time, FRP skylight sheet is easy to install due to its lightweight and material itself is naturally corrosion resistance. The corrugated roof is produced in a constant size so that it can easily assemble and customized by cutting the desired size. Fiberglass skylight roof is also much more economical compared to polycarbonate sheets and lesser maintenance is required. Similar to other polymer roofing sheet it is very good for long term energy cost savings.

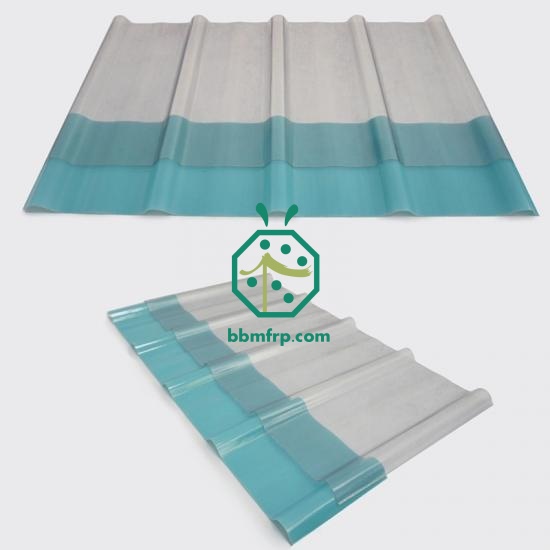

1. Product photos of fiberglass skylight roofing panels:
2. Parameters of frp skylight roofing sheet:
Cover Material
PET Film
Resin Material
UPR
Fiberglass
E-Glass
Anti-UV
≥99%
Weight
1.4kg/m2/mm
Temperature
-20ºC to 80ºC
Product Standard
GB/T-14206
Shear Strength
92 MPa
Tensile Strength
75 MPa
Flexural Strength
110 MPa
Thermal Conductivity
0.158 W/M·K
Thermal Coefficient
2.55x10-5 cm/cm/ºC
3. Features of fiberglass skylight roofing panel:
a. Light transmission rate of 70-90%
b. Anti-aging
c. Good corrosion resistance
d. Excellent toughness
e. Working temperature: -40°c to+ 130 °c
f. Thickness:0.8-2.5mm
g. Excellent water resistance
h. Impact resistance and low temperature resistance
i. Light weight
j. Difficult to be burned
5. Regular profile of fiberglass skylight for metal roof:
6. Application of fiberglass skylight roofing:
Fiberglass skylight roofing sheet could be used for the roofing construction of: Resident building; Vegetable greenhouse; Factory building; Farm product market; Farm house; Water resorts and cottages; Park shed; Bus station; Backyard pergola.
